PRODUCT INFORMATION

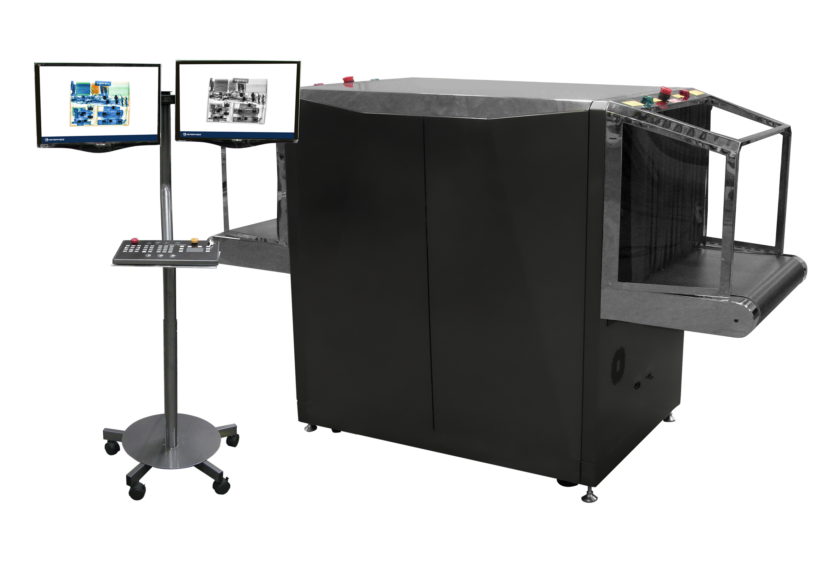

The Astrophysics 6545VI™ is undoubtedly the highest performance X-ray baggage and parcel inspection system in its class. Featuring an upgraded frame with stainless steel accents, tunnel extensions, service-friendly paneling, and a Mobile Monitor Stand, it delivers a sleek aesthetic combined with maximum operational efficiency.
Powered by advanced VI software, dual 21.5” high-resolution monitors, and a robust 180 kV generator, the 6545VI™ generates high-definition imaging with unparalleled clarity and deep steel penetration.
Brought to you by Afghan World Technologies (AWT)—the authorized distributor in Afghanistan—this system is designed to meet the rigorous security demands of embassies, airports, government facilities, and commercial centers across Kabul and all 34 provinces. With full local warranty, technical support, and certified installation services, AWT ensures your security infrastructure remains fully operational 24/7.
Advanced X-Ray Inspection System Astrophysics 6545VI in Afghanistan
- High-Resolution Imaging: Equipped with a 180 kV generator and dual 21.5" monitors with 24-bit color depth for high-definition clarity and penetration.
- Intelligent Material Discrimination: Advanced 3 & 6 color imaging and Atomic Z-Number measurement for precise threat detection.
- Heavy-Duty & Modern Design: Upgraded frame featuring stainless steel accents, tunnel extensions, and a Mobile Monitor Stand for flexible deployment.
- Nationwide AWT Support: Fully backed by Afghan World Technologies (AWT) with installation, maintenance, and technical service across Kabul and all 34 provinces of Afghanistan.
Why Choose the Astrophysics 6545VI X-Ray Scanner for Security in Afghanistan?
The Astrophysics 6545VI is an industry-leading X-ray inspection system designed for high-security checkpoints. Afghan World Technologies (AWT) brings this U.S.-manufactured security technology to government institutions, embassies, international airports, commercial facilities, and border crossings throughout Afghanistan. Featuring Real-Time Diagnostics and a 100% duty cycle with zero warm-up time, the 6545VI ensures uninterrupted, fast, and reliable screening operations under any operational environment.
Need complete technical data, dimensions, or official project documentation? Download the official Astrophysics 6545VI PDF brochure below.
| PHYSICAL SPECIFICATIONS | |
|---|---|
| Tunnel Size (W x H): | 65.1 cm x 45.4 cm 25.6” x 17.88” |
| Dimensions1 (L x W x H): | 218.8 cm x 95.3 cm x 130.7 cm 86.2” x 37.5” x 51.5” |
| Net Weight1: | 520 kg (1145 lbs) |
| Shipping Weight1: | 710 kg (1565 lbs) |
| Conveyor Speed: | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height: | 73.4 cm (28.9”) from Floor |
| Conveyor Capacity: | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY GENERATOR & IMAGE PERFORMANCE | |
| Voltage: | 180kV, Operating at 165kV |
| Tube Current: | 1.2 mA |
| Wire Resolution2: | 41 AWG Typical, 40 AWG Standard |
| Steel Penetration2: | 43 mm Typical, 41 mm Standard |
| Cooling: | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle: | 100%, No Warm-Up Procedure Required |
| Beam Direction: | Diagonally Upward |
| COMPUTER & VIDEO | |
| Platform: | Windows® OS |
| Power Conditioner: | Automatic Voltage Regulator (AVR), 600VA |
| Display Type: | Dual 21.5” Flat Panel Color Monitors |
| Display Resolution: | 1920 x 1080; 24 Bit/Pixel Color |
| ENVIRONMENTAL | |
| Operating Temperature: | 0ºC to 40ºC / 32ºF to 104ºF |
| Storage Temperature: | -20ºC to 60ºC / -4ºF to 140ºF |
| Humidity: | Up to 95% Non-Condensing |
| ELECTRICAL | |
| System Power: |
110VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| HEALTH & SAFETY | |
|
Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40) Typical radiation leakage is less than 0.1 mR/hr (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards) |
|
| STANDARD FEATURES | |
|---|---|
| Image Processing & Display: |
3 & 6 Color Imaging Black & White Imaging Enhanced Imaging™ High Penetration Function Hold to Preview Imaging Functions Inverse Color Organic/Inorganic Imaging Pseudo Color Reverse Monochrome |
| Material & Image Analysis: |
Atomic Z-Number Measurement Material Discrimination Geometric Image Distortion Correction Real-Time Image Manipulation |
| Archiving & Management: |
Auto Image Archiving Image Review Save Image (RGB) Baggage Counter Image Annotation JPEG Conversion Print Image Capable |
| System & Network: |
Multi-Tier Accessibility Network Ready Real-Time Self Diagnostics |
| Zoom & Navigation: |
9 Quadrant Zoom Continuous Scanning Continuous Zoom Up to 64x Vertical Zoom Panning |
| OPTIONAL FEATURES | |
|---|---|
| Software & Detection Options: |
Artificial Intelligence (AI) Barcode Scanning Density Alert Local Language Safe Passage® Computer Based Training Screener Assist Software Test Case Threat Image Projection (TIP) Software |
| Conveyor & Mechanical Options: |
Conveyor Capacity Load Increase Motorized Rollers (Available in 1, 2 or 3 Meters) Variable Conveyor Speed Roller Bed Entry/Exit Roller Tables |
| Hardware & Power Options: |
External USB Ports Footmat Operator Interlock Internal/External UPS Radiation Meter Remote Workstation Configuration 24” Flat Panel Monitor Custom Paint Environmental Kit |
Ready to Secure Your Facility in Afghanistan?
Our security engineering team at AWT is ready to consult, deliver, and install Astrophysics X-ray systems anywhere in Afghanistan. Contact us today for a custom project quote or technical inquiry.
