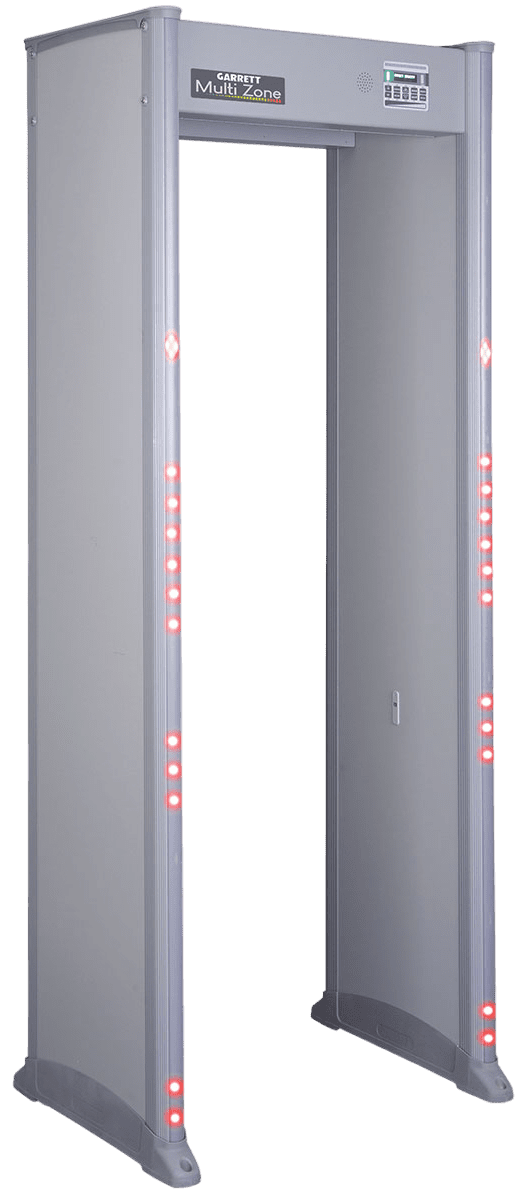

Garrett Multi Zone™ Walk-Through Metal Detector
Secure your premises with American quality at a global price. The Garrett Multi Zone™ Walk-Through Metal Detector offers powerful, budget-friendly security screening with 20 precise independent zones to pinpoint multiple objects simultaneously across the left, center, and right sides. Designed for optimum performance and ease of use, it features over 15 versatile application programs ideal for schools, airports, and special events. Equipped with an included 1-hour emergency backup battery and environmentally protected for reliable performance, this system ensures uninterrupted screening.
Afghan World Technologies (AWT) is your trusted partner, providing complete delivery, professional installation, and dedicated 3-year warranty technical support for this detector anywhere in Afghanistan.
PRODUCT HIGHLIGHTS
Walk-Through Metal Detector
Accurate Pinpointing
Precise Detection: 20 zones provide exact locations of multiple objects simultaneously.
Comprehensive Coverage: Effectively locate items across left, center, and right zones, ensuring thorough security screening.
Portable Protection

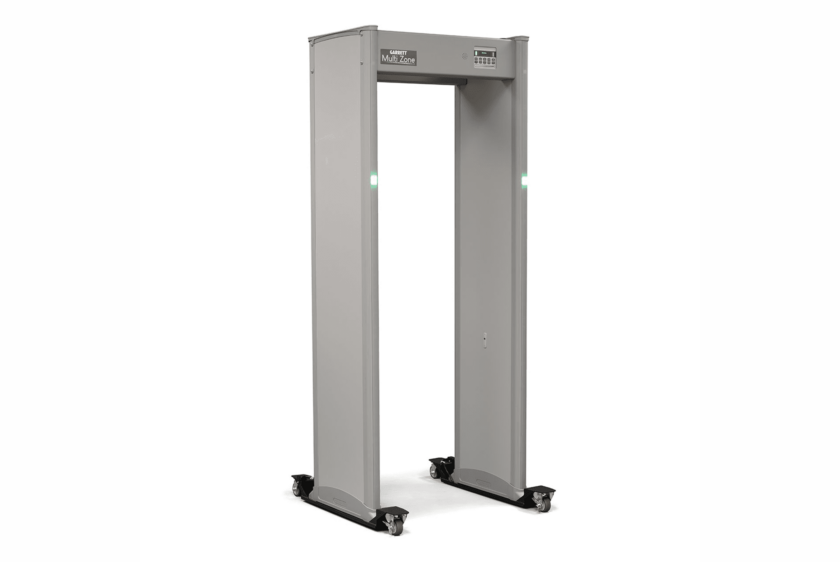

Rapid Deployment: Optional casters and battery module for quick setup and mobility.
No Wires: Easily move and deploy at various locations.
Optimum Performance
Versatile Programs: Over 15 applications for diverse settings including schools, airports, and events.
Field Programmable: Environmentally protected for reliable performance.
How it Compares with PD 6500I
Detection Zones: Multi Zone has 20 zones, while PD 6500i offers 33 zones.
Synchronization: Both models synchronize with wired and wireless operations, but Multi Zone includes an auto frequency scan.
GENERAL SPECIFICATIONS
| Detection Zones | 20 independent zones; visual and audible alarms |
| Multi-Unit Synchronization | Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation |
| Visual Displays | LED zone indicator lights on both panels. Status lights are individually configurable as pace lights, ready/alarm lights or disabled. |
| Access Control | Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head. |
| Passageway Interior Size | Width 30″ (0.76 m) Height 80″ (2.03 m) Depth 23″ (0.58 m) (32” versions are also available) |
| Overall Exterior Size | Width 35″ (0.90 m) Height 87″ (2.21 m) Depth 23″ (0.58 m) |
| Shipping Size | Width 35.5″ (.90 m) Height 91.5″ (2.32 m) Depth 6.25″ (.16 m) |
| Shipping Weight | 151 lbs. (68.5 kg) |
| Operating Temperatures | -4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing. |
| Power | Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. 1-hour backup battery included for the MultiZone. |
| Regulatory Information | Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending. |
| Weatherproofing | Meets IP 55, IEC 529 Standard for moisture, foreign matter protection |
| Construction | Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. |
| Control Outputs | Optional Relay module connected via RS 485 cable provides NO/NC relay contact |
| (optional) Remote Control | Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote |
| (optional) Networking | Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. |
| Warranty | 36 months, limited parts and labor |
Enhance Your Venue's Security with the Garrett Multi Zone
Partner with Afghan World Technologies (AWT) for reliable, budget-friendly security screening. Request a custom quote today, or explore our nationwide installation and support services across Afghanistan.
