PRODUCT INFORMATION

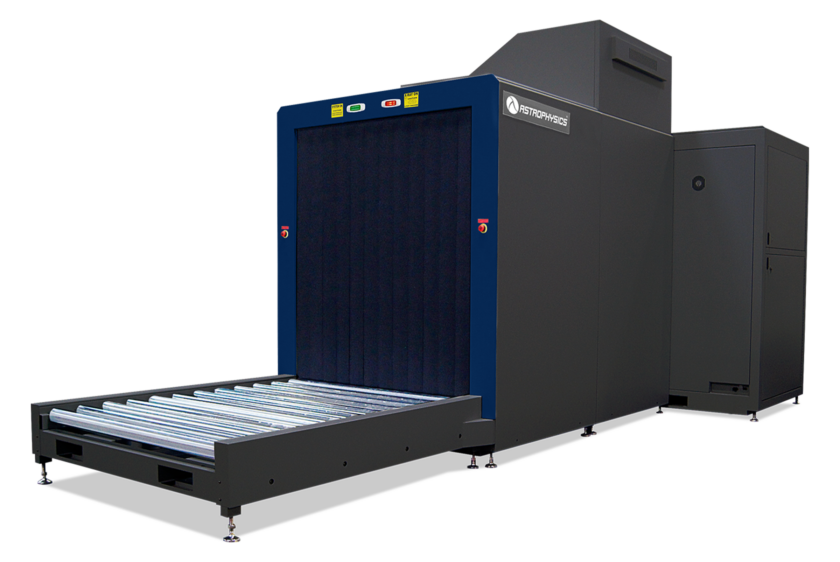

The XIS-1517DV 200kV™ is a dual-view X-Ray Inspection System (XIS) designed for cargo screening. The system features a heavy duty roller bed only 38.3 cm (15″) above the floor, convenient for loading and unloading freight. Its dual 200kV generators provide 52 mm of steel penetration and clear, high-resolution images, making it an ideal solution for airports, logistics centers, and customs facilities.
AWT Commitment: Afghan World Technologies (awt.af) is proud to supply this advanced high-capacity screening solution to our local market. We provide comprehensive, nationwide installation, technical training, and dedicated maintenance support across all provinces of Afghanistan, ensuring your security operations run flawlessly and without interruption.
Unmatched Cargo Inspection for Afghanistan's Logistics & Customs
- Dual imaging system provides operators with two views of scanned objects for maximum threat detection.
- Heavy-duty roller bed supports up to 3000 kg (6613 lbs) evenly distributed load.
- Ideal for scanning massive freight with high-contrast, 24-bit color image analysis.
- Seamlessly isolates threats with Atomic Z-Number Measurement and Material Discrimination.
Advanced Imaging & Seamless Diagnostics
Combined with top-tier software, this system empowers operators to identify materials and isolate threats with unparalleled speed.
Due to continued product development, Astrophysics Inc. reserves the right to amend all technical specifications without prior notice.
| Specification Category | Details |
|---|---|
| PHYSICAL SPECIFICATIONS | |
| Tunnel Size (W x H) | 150.2 cm x 170.2 cm (59.1 in x 67.0 in) |
| Dimensions (L x W x H) | 853.1 cm x 259.1 cm x 286.3 cm (335.9 in x 102.0 in x 112.7 in) |
| Net Weight | 5300 kg (11685 lbs) |
| Conveyor Speed | 20 cm/s (40 ft or 12m/min) Forward or Reverse |
| Conveyor Height | 38.3 cm (15.0 in) from Floor |
| Conveyor Capacity | 3000 kg (6613 lbs) Evenly Distributed Load |
| X-RAY GENERATOR & IMAGE PERFORMANCE | |
| Voltage | Dual 200kV |
| Tube Current | Dual 1.0 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 52 mm Typical, 50 mm Standard |
| Cooling | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle | 100%, No Warm Up Procedure Required |
| Beam Direction | Horizontally Sideward, Vertically Downward |
| COMPUTER & VIDEO | |
| Platform | Windows OS |
| Display Type | Dual 24″ Flat Panel Monitors |
| Display Resolution | 1920 x 1200 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up to 95% non-condensing |
| ELECTRICAL | |
| System Power | 110VAC +/-10% 50/60Hz, 20 Amp Max / 220VAC +/-10% 50/60Hz, 15 Amp Max |
| Power Conditioner | Uninterruptible Power Supply (UPS) (Computer Operation) |
| HEALTH & SAFETY | |
| Compliance | Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Radiation Leakage | Typical Radiation leakage is less than 0.1 mR/hr (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards) |
| Feature Set A | Feature Set B |
|---|---|
| 3 & 6 Color Imaging | Material Discrimination |
| Black & White Imaging | Real-Time Image Manipulation |
| Enhanced Imaging Mode | Baggage Counter |
| High Penetration Function | Image Annotation |
| Hold to Preview Imaging Functions | JPEG Conversion |
| Inverse Color | Print Image Capable |
| Organic/Inorganic Imaging | Multi-Tier Accessibility |
| Pseudo Color & Reverse Monochrome | Network Ready |
| Auto Image Archiving & Image Review | Real-Time Self Diagnostics |
| Atomic Z-Number Measurement | Continuous Zoom Up to 64x |
| Hardware & Upgrades | Software & Integrations |
|---|---|
| Conveyor Capacity Load Increase | Barcode Scanning |
| External USB Ports | Density Alert |
| Variable Conveyor Speed | Local Language |
| Entry/Exit Roller Tables | Safe Passage Computer Based Training |
| Environmental Kit | Screener Assist Software |
| Footmat Operator Interlock | Threat Image Projection (TIP) Software |
| Radiation Meter | Test Case |
| Remote Workstation Configuration | Custom Paint |
