PRODUCT INFORMATION
The XIS-1517DV 320kV™ is a powerful dual-view X-Ray Inspection System (XIS) designed specifically for high-penetration cargo screening and hold cargo scanning. Its heavy-duty conveyor bed features steel roller-wheels positioned just 35.6 cm (14″) above the floor, which significantly speeds up and simplifies the loading and unloading of heavy cargo and pallets.
Nationwide Support in Afghanistan

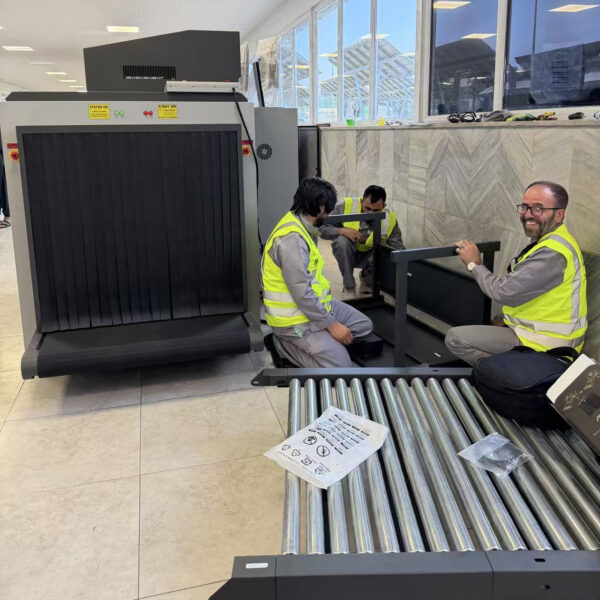

To ensure your security operations run seamlessly, Afghan World Technologies (awt.af) provides full, nationwide installation, maintenance, and technical support across Afghanistan. Our local expertise guarantees that your facility benefits from maximum uptime and rapid response times for any service needs.
Unmatched Cargo Inspection and Advanced Dual-View Security for Afghanistan's Logistics & Customs
- Dual-view technology captures two independent angles simultaneously, ensuring comprehensive inspection of complex cargo configurations without blind spots.
- Dual 320kV generators provide superior steel penetration, enabling operators to inspect dense industrial shipments and heavy freight with absolute clarity.
- Heavy-duty low-profile roller bed minimizes physical strain during loading and accelerates throughput at busy logistics and customs checkpoints.
- Advanced material discrimination and 24-bit true color imaging accurately separate organic, inorganic, and metallic objects to isolate concealed threats.
- Operator workstations feature high-resolution dual flat-panel displays powered by an intuitive Windows operating environment for seamless multitasking.
- Robust safety architecture complies with international standards, ensuring minimal radiation leakage and safe operational environments for personnel.
Intelligent Software and High-Performance Processing Capabilities
Driven by advanced multi-tier operating software and high-speed processing architecture, the XIS-1517DV 320kV™ equips security professionals with real-time diagnostic tools, high-contrast image enhancement, and automated threat detection features designed to optimize operational workflows.
Due to continued product development, technical specifications are subject to change without prior notice.
| General Specifications | Technical Details |
|---|---|
| Physical | |
| Tunnel Size (W x H) | 152.4 cm x 170.2 cm (60.0″ x 67.0″) |
| Dimensions (L x W x H) | 1069.4 cm x 281.1 cm x 304.8 cm (421.0″ x 110.7″ x 120.0″) |
| Net Weight | 16000 kg (35275 lbs) |
| Shipping Weight | 20000 kg (44095 lbs) |
| Conveyor Speed | 20 cm/s (40 ft or 12 m/min) Forward or Reverse |
| Conveyor Height | 35.5 cm (14.0″) from Floor |
| Conveyor Capacity | 3000 kg (6613 lbs) Evenly Distributed Load |
| X-Ray Generator & Image Performance | |
| Voltage | Dual 320kV Generators |
| Tube Current | Dual 7.0 mA |
| Wire Resolution | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration | 80 mm Typical, 75 mm Standard |
| Cooling | Integrated Cooler Unit with Forced Air |
| Beam Direction | Horizontally Sideward, Vertically Downward |
| Computer & Video | |
| Platform | Windows OS |
| Display Type | Dual 24″ Flat Panel Monitors |
| Display Resolution | 1920 x 1200 |
| Memory | 8 GB RAM |
| Storage Capacity | 256 GB SSD |
| Environmental | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Up to 95% non-condensing |
| Electrical | |
| System Power | 220VAC +/-10% 50/60Hz, 100 Amp Max |
| Power Conditioner | Uninterruptible Power Supply (UPS) for Computer Operation |
| Health & Safety | |
| Compliance | Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40) |
| Radiation Leakage | Typical radiation leakage is less than 0.1 mR/hr (Less than 0.5 mR/hr permitted by Federal Standard) |
| Standard Feature Category | Description & Capabilities |
|---|---|
| Imaging Capabilities | 3 & 6 Color Imaging, Black & White Imaging, Enhanced Imaging, Organic/Inorganic Imaging |
| Performance Modes | High Penetration Function, Pseudo Color, Reverse Monochrome |
| Image Management | Auto Image Archiving, Image Review, Save Image (RGB), JPEG Conversion, Print Image Capable |
| Analysis Tools | Atomic Z-Number Measurement, Material Discrimination, Geometric Image Distortion Correction, Real-Time Image Manipulation |
| Operational Tracking | Baggage Counter, Image Annotation, Multi-Tier Accessibility, Network Ready, Real-Time Self Diagnostics |
| Zoom & Navigation | 9 Quadrant Zoom, Continuous Scanning, Continuous Zoom Up to 64x, Vertical Zoom Panning |
| Optional Feature Category | Upgrade Options |
|---|---|
| Software & Training | Safe Passage Computer Based Training, Screener Assist Software, Threat Image Protection (TIP) Software, Density Alert |
| Hardware & Peripherals | Barcode Scanning, External USB Ports, Footmat Operator Interlock, Radiation Meter, Test Case |
| Mechanical & Customization | Conveyor Capacity Load Increase, Variable Conveyor Speed, Entry/Exit Roller Tables, Environmental Kit, Custom Paint, Local Language |
