PRODUCT INFORMATION

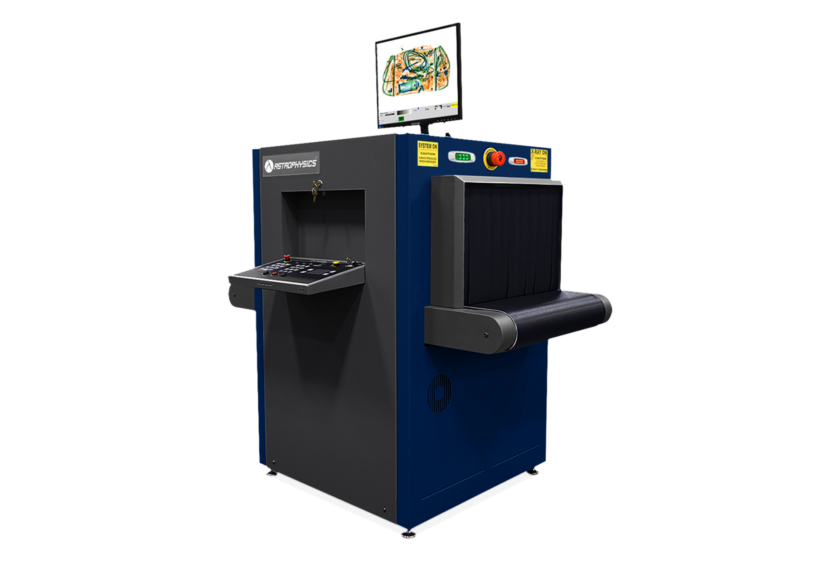

The Mail & Small Parcel Scanner Model XIS-5335S™ is a compact X-Ray Inspection System (XIS) that provides more power than any system with its tunnel size. Capable of seamlessly fitting through standard doorways, the system’s small footprint allows for easy relocation and installation, while its powerful 160kV generator provides improved detection for small objects such as bags, backpacks, and mail parcels.
As a trusted security partner in Afghanistan, Afghan World Technologies (AWT) provides this ideal space-saving solution to ministries, embassies, banks, and commercial facilities across Kabul and all 34 provinces. With 6-Color Imaging and high-contrast filters, operators can locate weapons, narcotics, and contraband quickly and accurately, ensuring your facility remains secure without sacrificing valuable floor space.
Maximum Power in a Compact Security Scanner
- Space-Saving & Relocatable: Designed with a small footprint that easily fits through standard doorways, making it perfect for rapid relocation and deployment in tight spaces.
- Heightened Penetration: Equipped with a powerful 160kV generator (operating at 150kV) that can penetrate up to 39 mm of steel (Typical) for unmatched clarity in small parcel inspection.
- Advanced Material Discrimination: Helps operators identify materials instantly using standard 3 & 6 Color Imaging, Atomic Z-Number Measurement, and optional 8-Color Imaging.
- Optimized Hardware: Runs on a highly reliable Windows OS platform with 8 GB RAM and a 256 GB SSD, displaying crystal-clear scans on a 21.5” Flat Panel Monitor (1920 x 1080).
- AWT Nationwide Support: AWT provides certified sales, expert installation, operator training, and reliable 24/7 technical support for the XIS-5335S™ everywhere in Afghanistan.
Enhance Checkpoint Efficiency with the XIS-5335S™
The Astrophysics XIS-5335S™ combines robust software with heavy-duty penetration in a compact frame. Supplied by AWT, this system includes real-time diagnostics, auto image archiving, and geometric image distortion correction to streamline daily security protocols for high-threat environments.
Need detailed dimensions, electrical requirements, or an official product datasheet to plan your security infrastructure in Afghanistan? Download the PDF brochure below.
| GENERAL SPECIFICATIONS | |
|---|---|
| Tunnel Size (WxH): | 53.3 cm x 35.8 cm 21.0” x 14.1” |
| Dimensions1 (LxWxH): | 133.1 cm x 76.4 cm x 122.5 cm 52.4” x 30.1” x 48.2” |
| Shipping Dimensions1 (LxWxH): | 144.8 cm x 86.4 cm x 160.0 cm 57.0” x 34.0” x 63.0” |
| Net Weight1: | 333 kg (734 lbs) |
| Shipping Weight1: | 365 kg (804 lbs) |
| Conveyor Speed: | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height: | 72.9 cm (28.7”) from Floor |
| Conveyor Capacity: | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY GENERATOR & IMAGE PERFORMANCE | |
| Voltage: | 160kV, Operating at 150kV |
| Tube Current: | 0.7 mA |
| Wire Resolution2: | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration2: | 39 mm Typical, 37 mm Standard |
| Cooling: | Sealed Di-Electric Oil Bath with Forced Air |
| Duty Cycle: | 100%, No Warm-Up Procedure Required |
| Beam Direction: | Diagonally Upward |
| COMPUTER & VIDEO | |
| Platform: | Windows® OS |
| Memory: | 8 GB RAM |
| Storage Capacity: | 256 GB SSD |
| Display Type: | 21.5” Flat Panel Monitor |
| Display Resolution: | 1920 x 1080 |
| ENVIRONMENTAL | |
| Operating Temperature: | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature: | -20°C to 60°C / -4°F to 140°F |
| Humidity: | Up To 95% Non-Condensing |
| ELECTRICAL | |
| System Power: |
110 VAC +/- 10% 50/60Hz, 15 Amp Max 220VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner: | Automatic Voltage Regulator (AVR), 600VA |
| HEALTH & SAFETY | |
|
Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40) Typical radiation leakage is less than 0.1 mR/hr (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards) |
|
| STANDARD FEATURES | |
|---|---|
| Imaging & Display: |
3 & 6 Color Imaging Black & White Imaging Enhanced Imaging™ High Penetration Function Hold to Preview Imaging Functions Inverse Color Organic/Inorganic Imaging Pseudo Color Reverse Monochrome |
| Material & Image Analysis: |
Atomic Z-Number Measurement Geometric Image Distortion Correction Material Discrimination Real-Time Image Manipulation |
| Archiving & Storage: |
Auto Image Archiving Image Review Save Image (RGB) |
| Hardware & System: | Baggage Counter |
| Annotation & Export: |
Image Annotation JPEG Conversion Print Image Capable |
| System & Network: |
Multi-Tier Accessibility Network Ready Real-Time Self Diagnostics |
| Zoom & Navigation: |
9 Quadrant Zoom Continuous Scanning Continuous Zoom Up to 64x Vertical Zoom Panning |
| OPTIONAL FEATURES | |
|---|---|
| Software & Detection Options: |
Artificial Intelligence (AI) Barcode Scanning Density Alert Local Language Safe Passage® Computer Based Training Screener Assist Software Test Case Threat Image Projection (TIP) Software |
| Conveyor & Interface Options: |
External USB Ports Conveyor Capacity Load Increase Variable Conveyor Speed |
| Hardware & System Accessories: |
24” Flat Panel Monitor Custom Paint Environmental Kit Entry/Exit Roller Tables Footmat Operator Interlock Roller Bed Short Conveyor4 Long Conveyor5 Mobility Kit Radiation Meter Remote Workstation Configuration Internal/External UPS 8-Color Imaging |
Maximize Detection in Tight Spaces with AWT
Looking for a high-power X-ray scanner with a small footprint? Afghan World Technologies (AWT) offers comprehensive sales, certified installation, and nationwide warranty support for the Astrophysics XIS-5335S™. Contact our Kabul office today to secure your mailroom or building entrance anywhere in Afghanistan.
