XIS-6040™ X-Ray Scanner

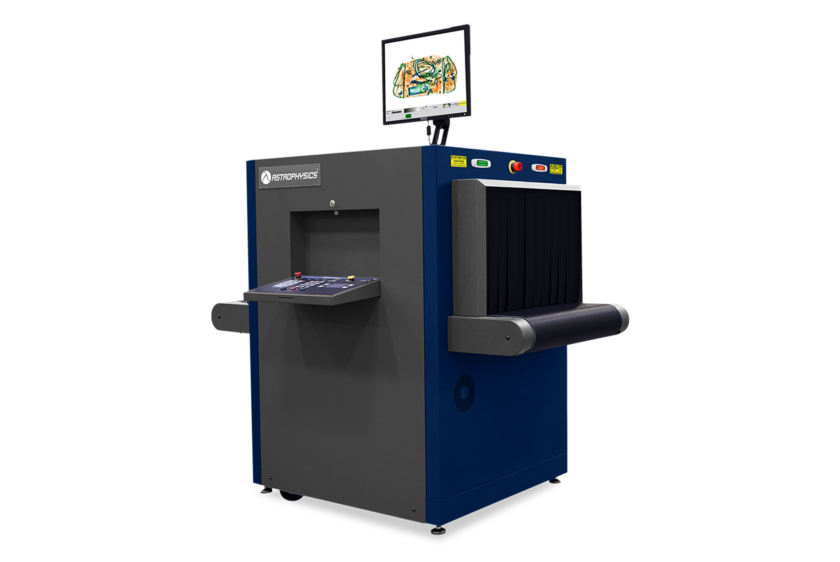

Astrophysics XIS-6040 mail and parcel X-ray scanner

PRODUCT HIGHLIGHTS

PRODUCT INFORMATION

The XIS-6040™ is Astrophysics’ mail and parcel X-ray inspection system for screening backpacks, purses, mail and parcels. It has a 60.0 cm x 40.0 cm tunnel and a 160kV generator, with 3 and 6 color imaging, material discrimination and Atomic Z-number measurement as standard features. Astrophysics describes it as the top choice among its X-ray scanners.

Afghan World Technologies (AWT) is an authorized Astrophysics distributor in Afghanistan and supplies the XIS-6040™ for checkpoints and mailrooms in Kabul and all 34 provinces. AWT provides installation, operator training and technical support. See the Astrophysics range for the other conveyor and cargo models, our services for installation and training, or request a quote for specifications and options.

XIS-6040™ Checkpoint X-Ray Scanner in Afghanistan

Enhance Your Security Operations with the Astrophysics XIS-6040™

The Astrophysics XIS-6040™ has a compact footprint (143.3 x 84.6 x 124.5 cm) for checkpoints and mailrooms in Afghanistan’s corporate and government sectors. Standard software features include Auto Image Archiving, Baggage Counter and Real-Time Self Diagnostics.
Need detailed dimensions, power requirements, or an official product datasheet for your security procurement in Afghanistan? Download the PDF brochure below.
PHYSICAL SPECIFICATIONS
Tunnel Size (W x H): 60.0 cm x 40.0 cm
23.6” x 15.8”
Dimensions1 (L x W x H): 143.3 cm x 84.6 cm x 124.5 cm
56.4” x 33.3” x 49.0”
Shipping Dimensions1 (L x W x H): 158.8 cm x 96.5 cm x 160.0 cm
62.5” x 38.0” x 63.0”
Net Weight1: 445 kg (980 lbs)
Shipping Weight1: 490 kg (1080 lbs)
Conveyor Speed: 23 cm/s (45 ft/min) Forward or Reverse
Conveyor Height: 71.6 cm (28.2”) from Floor
Conveyor Capacity: 165 kg (364 lbs) Evenly Distributed Load
X-RAY GENERATOR & IMAGE PERFORMANCE
Voltage: 160kV, Operating at 150kV
Tube Current: 0.7 mA
Wire Resolution2: 40 AWG Typical, 38 AWG Standard
Steel Penetration2: 39 mm Typical, 37 mm Standard
180kV Generator Upgrade (optional): Steel Penetration2 41 mm Typical, 39 mm Standard
Cooling: Sealed Di-Electric bath with Forced Air
Duty Cycle: 100%, No Warm-Up Procedure Required
Beam Direction: Diagonally Upward
COMPUTER & VIDEO
Platform: Windows® OS
Memory: 8 GB RAM
Storage Capacity: 256 GB SSD
Power Conditioner: Automatic Voltage Regulator (AVR), 600VA
Display Type: 21.5” Flat Panel Color Monitor
Display Resolution: 1920 x 1080
ENVIRONMENTAL
Operating Temperature: 0ºC to 40ºC / 32ºF to 104ºF
Storage Temperature: -20ºC to 60ºC / -4ºF to 140ºF
Humidity: Up to 95% Non-Condensing
ELECTRICAL
System Power: 110VAC +/- 10% 50/60Hz, 15 Amp Max
220VAC +/- 10% 50/60Hz, 10 Amp Max
HEALTH & SAFETY
Film Safety: Guaranteed up to ISO 1600 (33 DIN)
Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40)
Typical radiation leakage is less than 0.1 mR/hr (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards)

1 Weight and dimensions of the system may vary depending on customization. 2 As tested on Astrophysics Inc. Test Piece. Source: Astrophysics XIS-6040 datasheet (xis_6040-3.pdf).

STANDARD FEATURES
Image Processing & Display: 3 & 6 Color Imaging
Black & White Imaging
Enhanced Imaging™
High Penetration Function
Hold to Preview Imaging Functions
Inverse Color
Organic/Inorganic Imaging
Pseudo Color
Reverse Monochrome
Material & Image Analysis: Atomic Z-Number Measurement
Material Discrimination
Geometric Image Distortion Correction
Real-Time Image Manipulation
Archiving & Management: Auto Image Archiving
Image Review
Save Image (RGB)
Baggage Counter
Image Annotation
JPEG Conversion
Print Image Capable
System & Network: Multi-Tier Accessibility
Network Ready
Real-Time Self Diagnostics
Zoom & Navigation: 9 Quadrant Zoom
Continuous Scanning
Continuous Zoom Up to 64x
Vertical Zoom Panning
OPTIONAL FEATURES
Software & Detection Options: Artificial Intelligence (AI)
8 Color Imaging
Barcode Scanning
Density Alert
Local Language
Safe Passage® Computer Based Training
Screener Assist Software
Test Case
Threat Image Projection (TIP) Software
Conveyor & Mechanical Options: Conveyor Capacity Load Increase
Variable Conveyor Speed
Roller Bed
Entry/Exit Roller Tables
Hardware & Power Options: External USB Ports
Footmat Operator Interlock
Internal/External UPS
Radiation Meter
Remote Workstation Configuration
24” Flat Panel Monitor
Dual Monitors (21.5” or 24”)
180kV Generator Upgrade
Extended Tunnel Covers
Short Conveyor / Long Conveyor
Mobility Kit
Custom Paint
Environmental Kit
