PRODUCT INFORMATION

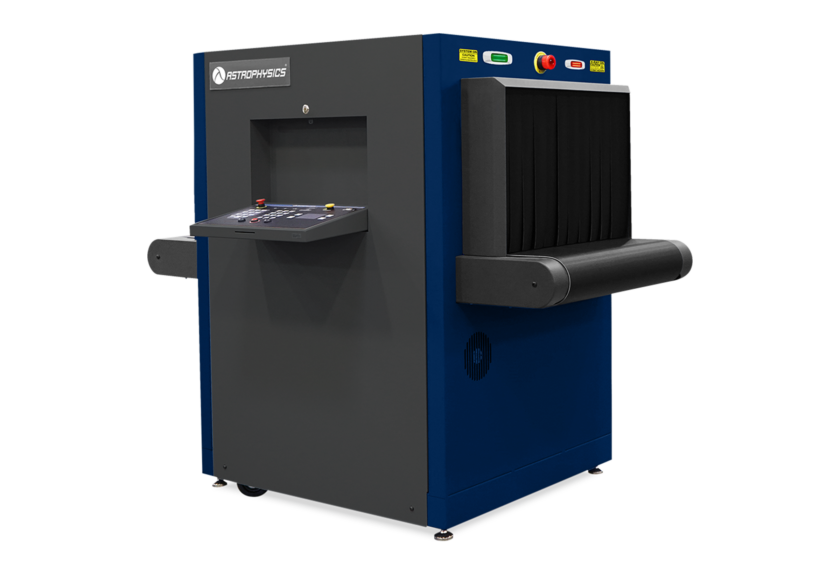

The Mail & Small Parcel Scanner Model XIS-6040N™ is a compact, narrow-frame X-Ray Inspection System (XIS) explicitly designed for screening backpacks, purses, and parcels in locations that require rapid relocation through standard doorways and tight spaces. It represents the best in optimized screening by packaging the same proven, top-tier screening technology of the standard XIS-6040 into a much slimmer frame, offering maximum flexibility without sacrificing image quality or performance.
As the premier security technology provider in Afghanistan, Afghan World Technologies (AWT) supplies this highly adaptable scanner to high-security checkpoints, office buildings, embassies, and ministries across Kabul and all provinces. The system delivers crisp, high-resolution images that allow local operators to recognize objects, identify materials, and isolate threats with exceptional speed and accuracy.
Optimized Checkpoint Screening for Confined Spaces in Afghanistan
- Space-Saving Design: Engineered with a narrow frame to fit perfectly in tight lobbies, narrow hallways, and confined security checkpoints while easily fitting through standard doorways.
- Superior Imaging Power: Powered by a robust 160kV generator (operating at 150kV), capable of penetrating up to 39 mm of steel (Typical) for high-contrast image analysis.
- Advanced Material Discrimination: Operators can easily isolate threats using standard 3 & 6 Color Imaging, Atomic Z-Number Measurement, and optional 8-Color Imaging.
- High-Performance Hardware: Operates on a stable Windows® OS, backed by 8 GB RAM, a 256 GB SSD, and a crisp 21.5” Flat Panel Color Monitor (1920 x 1080 resolution).
- Nationwide AWT Support: AWT ensures seamless deployment, certified operator training, and 24/7 technical support for the XIS-6040N™ across all 34 provinces of Afghanistan.
Maximize Security & Flexibility with the XIS-6040N™
The Astrophysics XIS-6040N™ is the optimal solution for high-security checkpoints operating in confined spaces. Provided by AWT, this system is equipped with automated tools like Auto Image Archiving, Real-Time Self Diagnostics, and Geometric Image Distortion Correction to ensure your facility's security operations are flawless and highly efficient.
Need detailed dimensions, electrical requirements, or full feature lists to plan your security checkpoint in Afghanistan? Download the official PDF brochure below.
| GENERAL SPECIFICATIONS | |
|---|---|
| Tunnel Size (WxH): | 60.0 cm x 40.0 cm 23.6” x 15.8” |
| Dimensions1 (LxWxH): | 141.2 cm x 80.9 cm x 133.7 cm 55.6” x 31.9” x 52.6” |
| Net Weight1: | 420 kg (925 lbs) |
| Shipping Weight1: | 465 kg (1025 lbs) |
| Conveyor Speed: | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height: | 80.9 cm (31.5”) from Floor |
| Conveyor Capacity: | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY GENERATOR & IMAGE PERFORMANCE | |
| Voltage: | 160kV, Operating at 150kV |
| Tube Current: | 0.7 mA |
| Wire Resolution2: | 40 AWG Typical, 38 AWG Standard |
| Steel Penetration2: | 39 mm Typical, 37 mm Standard |
| Cooling: | Sealed Di-Electric bath with Forced Air |
| Duty Cycle: | 100%, No Warm-Up Procedure Required |
| Beam Direction: | Diagonally Upward |
| COMPUTER & VIDEO | |
| Platform: | Windows® OS |
| Memory: | 8 GB RAM |
| Storage Capacity: | 256 GB SSD |
| Display Type: | 21.5” Flat Panel Monitor |
| Display Resolution: | 1920 x 1080 |
| ENVIRONMENTAL | |
| Operating Temperature: | 0ºC to 40ºC / 32ºF to 104ºF |
| Storage Temperature: | -20ºC to 60ºC / -4ºF to 140ºF |
| Humidity: | Up to 95% Non-Condensing |
| ELECTRICAL | |
| System Power: |
110 VAC +/- 10% 50/60Hz, 15 Amp Max 220 VAC +/- 10% 50/60Hz, 10 Amp Max |
| Power Conditioner: | Automatic Voltage Regulator (AVR), 600VA |
| HEALTH & SAFETY | |
| Film Safety: | Guaranteed up to ISO 1600 (33 DIN) |
|
Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40) Typical radiation leakage is less than 0.1 mR/hr (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards) |
|
| 180KV GENERATOR UPGRADE | |
| Penetration2: | 41 mm Steel Typical, 39 mm Standard |
| STANDARD | |
|---|---|
| Imaging & Display: |
3 & 6 Color Imaging Black & White Imaging Enhanced Imaging™ Mode High Penetration Function Hold to Preview Imaging Functions Inverse Color Organic/Inorganic Imaging Pseudo Color Reverse Monochrome |
| Material Analysis & Processing: |
Atomic Z-Number Measurement Material Discrimination Geometric Image Distortion Correction Real-Time Image Manipulation |
| Archiving & Management: |
Auto Image Archiving Image Review Save Image (RGB) Baggage Counter Image Annotation JPEG Conversion Print Image Capable |
| System & Network: |
Multi-Tier Accessibility Network Ready Real-Time Self Diagnostics |
| Zoom & Navigation: |
9 Quadrant Zoom Continuous Scanning Continuous Zoom Up to 64x Vertical Zoom Panning |
| OPTIONAL | |
|---|---|
| Software & Detection Options: |
Artificial Intelligence (AI) Barcode Scanning Density Alert Local Language Safe Passage® Computer Based Training Screener Assist Software Test Case Threat Image Projection (TIP) Software |
| Conveyor & Hardware Options: |
External USB Ports Conveyor Capacity Load Increase Variable Conveyor Speed |
| System Accessories & Hardware: |
Dual Monitors (21.5” or 24”) Custom Paint Entry/Exit Roller Tables Environmental Kit Extended Tunnel Covers Footmat Operator Interlock Roller Castors Long Conveyor Mobility Kit Radiation Meter Remote Workstation Configuration Internal/External UPS 8-Color Imaging |
Deploy Flexible & Reliable Security with AWT
Need a high-performance X-ray scanner that fits through narrow doorways and tight spaces? Afghan World Technologies (AWT) provides comprehensive sales, certified installation, and local warranty support for the Astrophysics XIS-6040N™. Contact our Kabul headquarters today to secure your facility anywhere in Afghanistan.
