PRODUCT INFORMATION

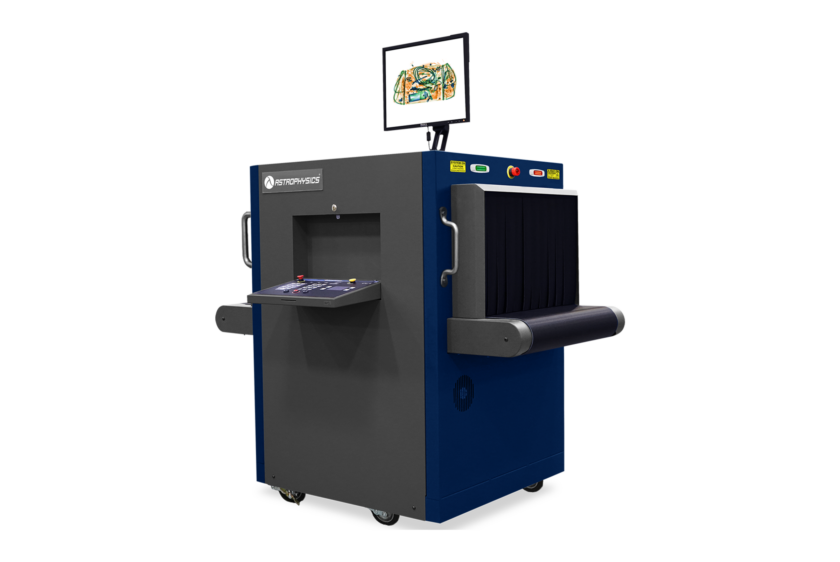

The XIS-6040SI™ is a high-performance X-Ray Inspection System (XIS) engineered specifically for high-security checkpoint screening of backpacks, purses, and small parcels. Recognized globally as the most deployed critical infrastructure X-ray scanner, it delivers proven field reliability and superior threat detection capabilities.
Brought to Afghanistan by Afghan World Technologies (AWT)—the trusted provider of security infrastructure—the XIS-6040SI™ is integrated with Screener Assist Intelligence Software and optional AI threat detection. Whether for government ministries, embassies, commercial towers, or border checkpoints across Kabul and all 34 provinces, AWT provides complete supply, certified installation, and 24/7 technical support.
Compact Checkpoint X-Ray Inspection System in Afghanistan
- Proven Global Deployment: Thousands of units actively deployed worldwide at critical infrastructure and checkpoint sites.
- Advanced AI Threat Identification: Features Screener Assist Software to automatically highlight organic/inorganic threats and dangerous contraband.
- High-Resolution Imaging: Equipped with a 21.5" flat-panel color monitor offering crisp 1920x1080 resolution.
- Rapid & Continuous Scanning: 100% duty cycle generator operating at 180kV with zero warm-up requirement.
- Compact Footprint: Fits easily through standard doorways and tight checkpoint entrances.
- Uninterrupted Power Backup: Built-in Uninterruptible Power Supply (UPS) supports up to 20 minutes of continuous computer operation.
- Full Local Support: Complete warranty, spare parts, and on-site engineering services supported by AWT nationwide.
Why the Astrophysics XIS-6040SI™ is the Most Sold Checkpoint X-Ray Scanner in Afghanistan
Designed for fast-paced operational environments, the Astrophysics XIS-6040SI™ provides operators with clear imaging, deep steel penetration, and advanced material discrimination. Afghan World Technologies (AWT) supplies and services this world-class X-ray system for airports, public venues, banks, and secure facilities in Kabul, Herat, Mazar-i-Sharif, Kandahar, and across all provinces of Afghanistan.
Download the official Astrophysics XIS-6040SI™ product specification brochure in PDF format for detailed project planning and architectural submittals.
| GENERAL SPECIFICATIONS | |
|---|---|
| Tunnel Size (WxH): | 60.0 cm x 40.0 cm 23.6” x 15.8” |
| Dimensions1 (LxWxH): | 143.3 cm x 84.6 cm x 133.7 cm 56.4” x 33.3” x 52.6” |
| Shipping Dimensions1 (LxWxH): | 158.8 cm x 96.5 cm x 168.9 cm 62.5” x 38.0” x 66.5” |
| Net Weight1: | 454 kg (1000 lbs) |
| Shipping Weight1: | 490 kg (1080 lbs) |
| Conveyor Speed: | 23 cm/s (45 ft/min) Forward or Reverse |
| Conveyor Height: | 71.6 cm (28.2”) from Floor |
| Conveyor Capacity: | 165 kg (364 lbs) Evenly Distributed Load |
| X-RAY GENERATOR & IMAGE PERFORMANCE | |
| Voltage: | 180kV, Operating at 165kV |
| Tube Current: | 1.2 mA |
| Wire Resolution2: |
36 AWG as tested on EWSTP 38 AWG as tested on Astrophysics test piece |
| Steel Penetration2: |
30 mm as tested on EWSTP 39 mm as tested on Astrophysics test piece |
| Cooling: | Sealed Di-Electric bath with Forced Air |
| Duty Cycle: | 100%, No Warm-Up Procedure Required |
| Beam Direction: | Diagonally Upward |
| COMPUTER & VIDEO | |
| Platform: | Windows® OS |
| Memory: | 8 GB RAM |
| Storage Capacity: | 256 GB SSD |
| Display Type: | 21.5” Flat Panel Color Monitor |
| Display Resolution: | 1920 x 1080 |
| ENVIRONMENTAL | |
| Operating Temperature: | 0ºC to 40ºC / 32ºF to 104ºF |
| Storage Temperature: | -20ºC to 60ºC / -4ºF to 140ºF |
| Humidity: | Up to 95% Non-Condensing |
| ELECTRICAL | |
| System Power: |
110 VAC +/- 10% 50/60Hz, 15 Amp Max 220 VAC +/- 10% 50/60Hz, 10 Amp Max |
| Backup: |
Uninterruptible Power Supply (Computer Operation-20min) |
| HEALTH & SAFETY | |
| Film Safety: | Guaranteed up to ISO 1600 (33 DIN) |
|
Compliant with USFDA Center for Devices and Radiation Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40) Typical radiation leakage is less than 0.1 mR/hr (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards) |
|
| STANDARD FEATURES | |
|---|---|
| Image Processing & Display: |
3 & 6 Color Imaging Black & White Imaging Enhanced Imaging™ High Penetration Function Hold to Preview Imaging Functions Inverse Color Organic/Inorganic Imaging Pseudo Color Reverse Monochrome Screener Assist Intelligence Software |
| Material & Image Analysis: |
Atomic Z-Number Measurement Geometric Image Distortion Correction Material Discrimination Real-Time Image Manipulation |
| Archiving & Management: |
Auto Image Archiving Image Review Save Image (RGB) Baggage Counter Image Annotation JPEG Conversion Print Image Capable |
| System & Network: |
Multi-Tier Accessibility Network Ready Real-Time Self Diagnostics |
| Zoom & Navigation: |
9 Quadrant Zoom Continuous Scanning Continuous Zoom Up to 64x Vertical Zoom Panning |
| OPTIONAL FEATURES | |
|---|---|
| Software & Detection Options: |
Artificial Intelligence (AI) Barcode Scanning Density Alert Local Language Safe Passage® Computer Based Training Test Case Threat Image Projection (TIP) Software |
| Conveyor & Mechanical Options: |
Conveyor Capacity Load Increase External USB Ports Variable Conveyor Speed Roller Bed Short Conveyor4 / Long Conveyor5 Entry/Exit Roller Tables |
| Hardware & System Accessories: |
24” Flat Panel Monitor Dual Monitors (21.5” or 24”) Touchscreen Custom Paint Environmental Kit Extended Tunnel Covers Footmat Operator Interlock Internal/External UPS Mobility Kit Radiation Meter Remote Workstation Configuration |
Looking for Checkpoint Security Solutions in Afghanistan?
Afghan World Technologies (AWT) provides certified sales, professional installation, and lifetime maintenance for Astrophysics X-ray inspection systems across all 34 provinces of Afghanistan.
